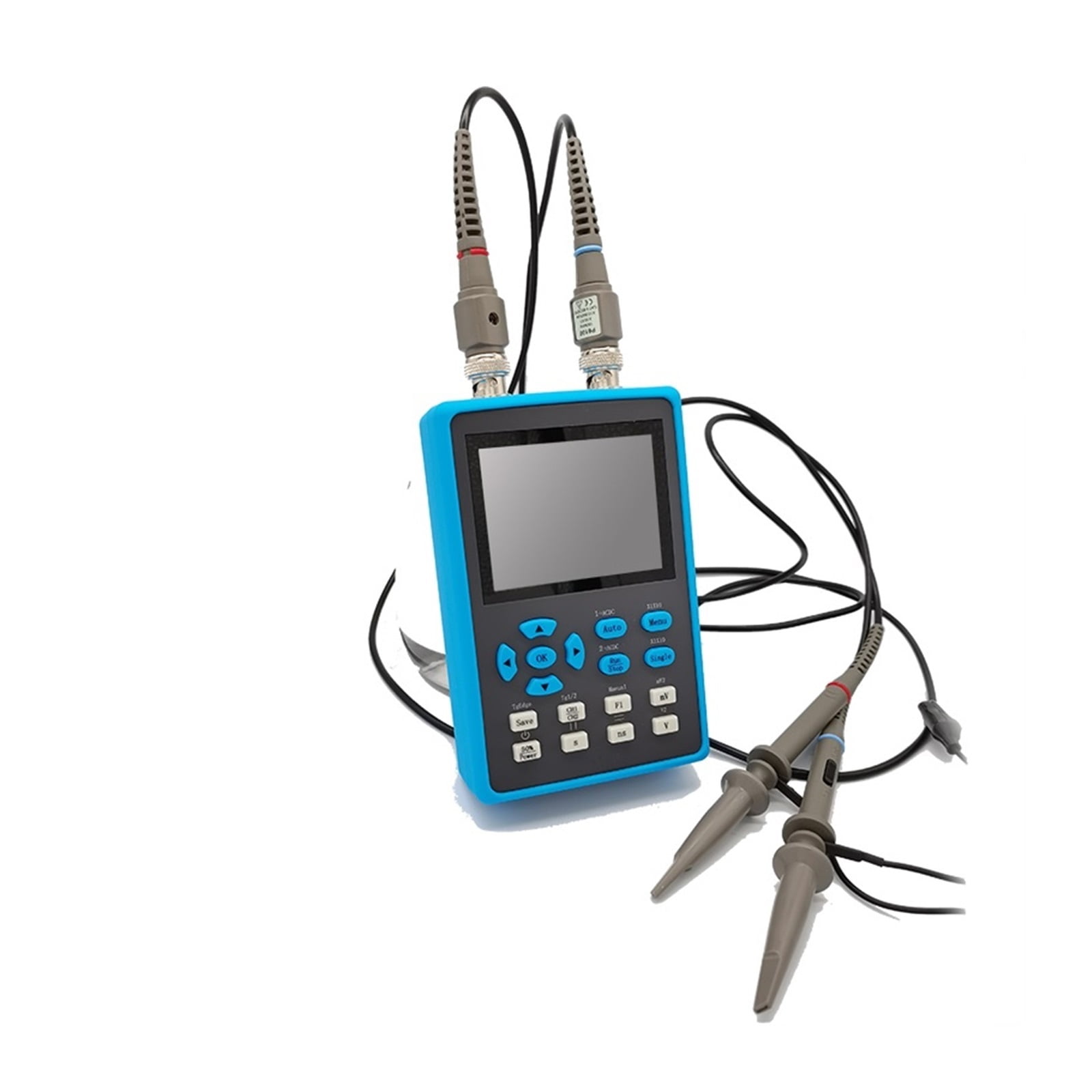

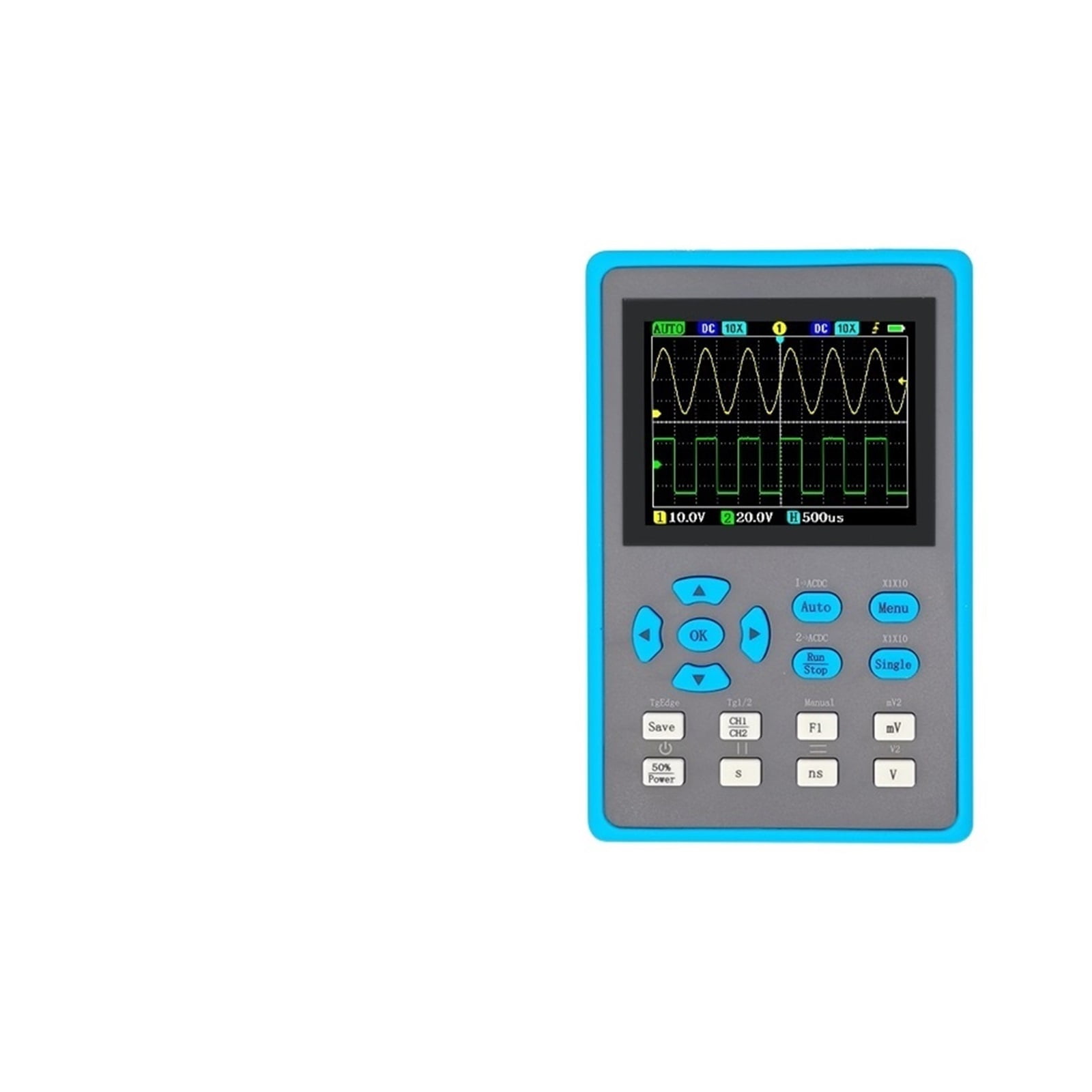

2.8 Inch Handheld Digital Oscilloscope 120M Bandwidth Dual Channel Oscilloscope Signal Generator ,Professional Designed

<p>Specifications:</p><p>Material: ABS</p><p>Channels: 2</p><p>Coupling: AC/DC</p><p>Precision of V: ±2%</p><p>Bandwidth 120M(ch1 only),dual channel mode is 60M.</p><p>Sampling rate: 500M</p><p>Screenshot: support</p><p>Rise time: &lt;3ns</p><p>Frequency: ±0.01%</p><p>Storage depth: 128K</p><p>Sin-gle: support</p><p>Impedance: 1M</p><p>FFT: support</p><p>Time base: 5ns~10s</p><p>Wa-ve out amp: 2.5V</p><p>Ver sensitivity: 10mV/div~10V/div</p><p>Wavesout freq: 10MHz(sin) 2MHz(other)</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.

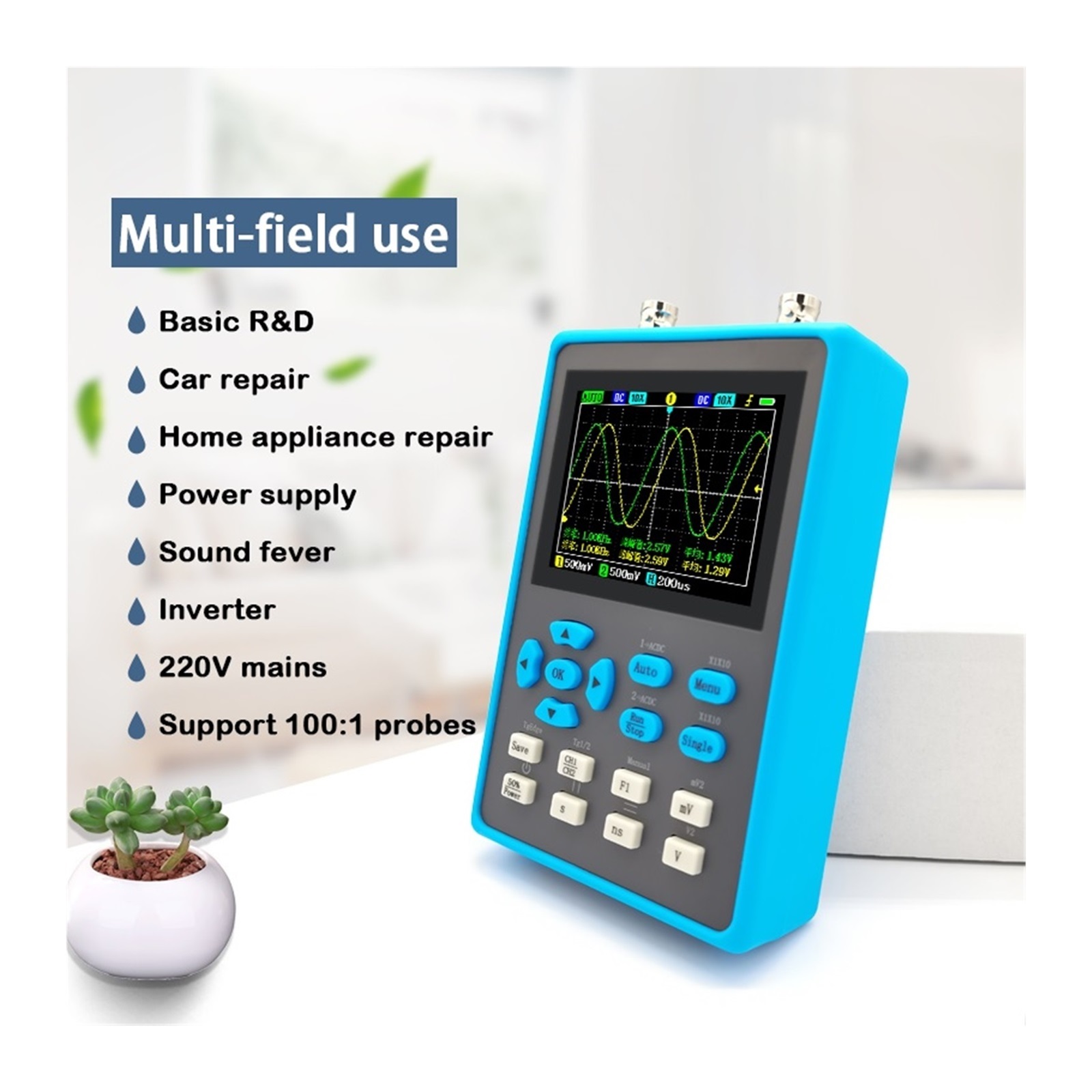

• Wide applications: can be used for such as sin-gle-chip debugging, car maintenance, home appliance maintenance,DIY debugging, electronic competition, power supplys debugging, frequency converter and so on.

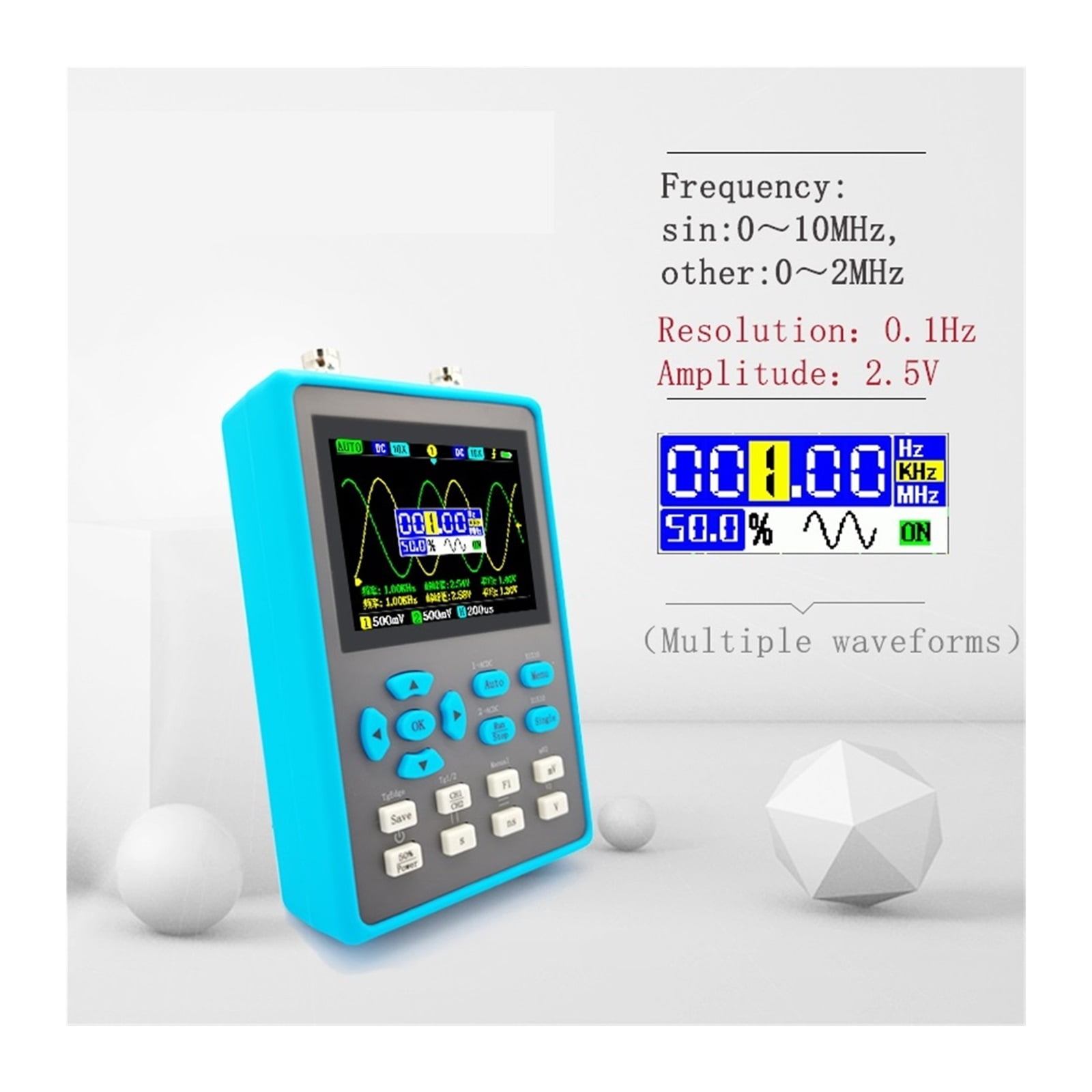

• The bottom of the oscilloscope can output a variety of waveforms of 2.5V amplitude such as sine waves, square waves, trian-gle waves, half waves, singh waves, among which the frequency adjustment rangesof sine wavesis 0~ 10MHz, the frequency rangesof other
• Waveforms is 0~2MHz, and the accuracy is up to 0.1Hz. Signal generators are widely used, such as square wavesfor new probe calibration, driving MOS tube, etc., sine wavescan be used for testing distortion, etc.

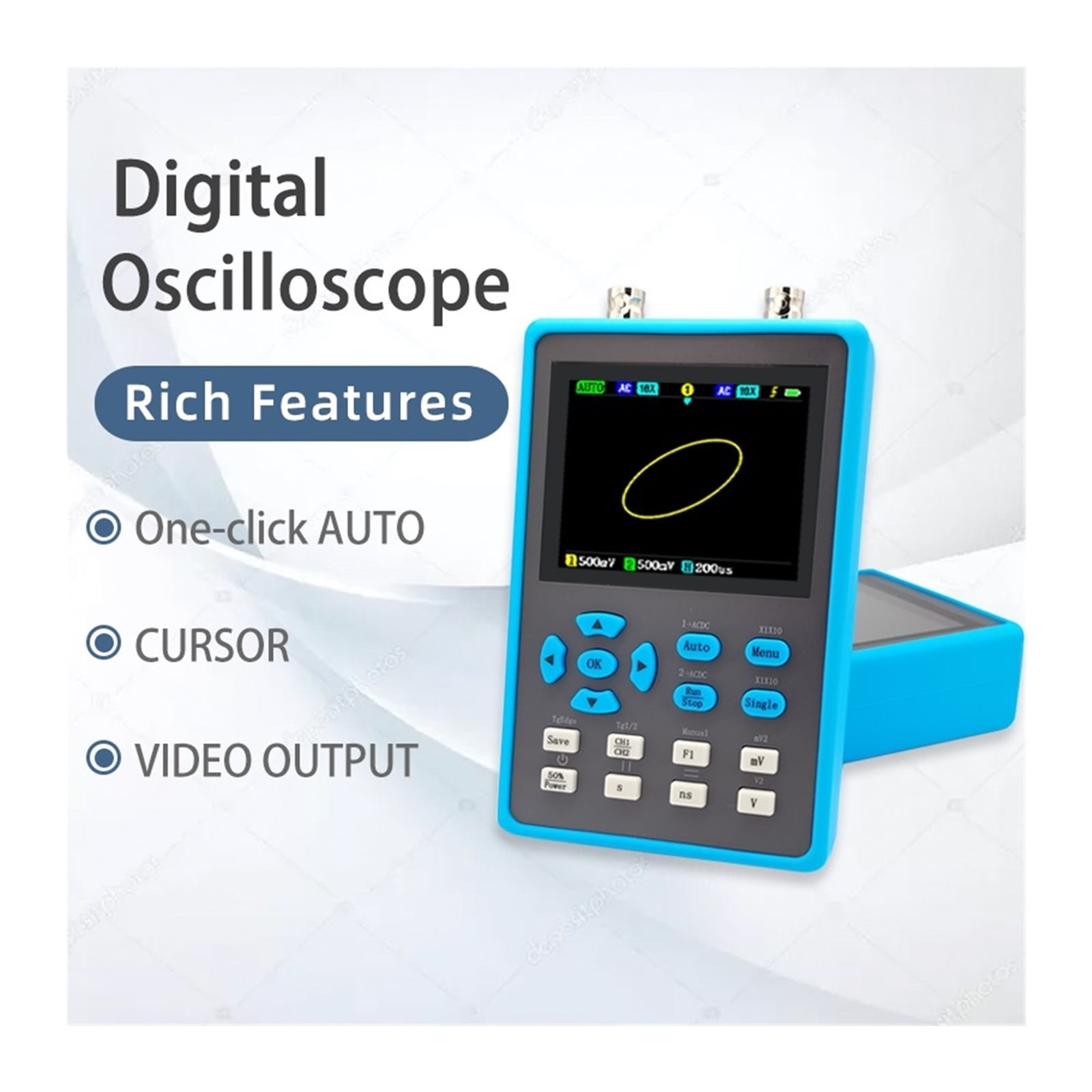

• Measurement options available: Frequency, Duty cycle, Amplitude, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.
